2022-2025 Hyundai Santa Cruz – all trim levels – FWD or AWD – 1.5″ front only leveling kit #303024

Code: 303024

$259.48

In Stock

Description

This Kit Fits:

2022-2025 Hyundai Santa Cruz

This kit fits the FWD SE with the 2.5 NON TURBO engine, the FWD SEL with the 2.5 NON TURBO engine, the NIGHT trim with the 2.5 Turbo HTRAC AWD, the XRT Off Road trim with the 2.5 Turbo HTRAC AWD and the LIMITED with the 2.5 Turbo HTRAC AWD ~ if you have a Santa Cruz this kit will work with all trim levels**

So you just bought a new 2022-2025 Hyundai Santa Cruz….but it sits WAAAAAY TO LOW in the front….guess what, we have the solution, our  1.5″ front only lift kit will fix all those problems!

This #303024 is our choice on the FWD as it makes the Santa Cruz sit close to level, but it is your vehicle, feel free to make it your own!

****If you are not sure if you want to do just the front or add the rear, there is an easy trick….simply slide your floor jack under the front or the rear or both and jack it up 1.0 or 1.25 or 1.5″ – so if you find you do want more rear height, there is a good possibility we have a solution for you! feel free to call us @ 855.668.0541….don’t forget, all of our parts are made in house by us, not imported from offshore or made at Uncle Binky’s Welding Saloon in Guatemala ( nothing wrong with Guatemala, or Uncle Binky…just saying, we make all of our parts) so yes, the fact we make all of our parts means we make all of our parts means we actually test fit them and in most cases can answer your questions :-}

Kit # 303025 adds an extra part to lift the rear 1″ ~ Check out Kit # 303026 if you have the tow package, the self levelling shocks or you are simply going off road and need the rear shock shaft for those of you who do weekly off-roading trips****

We have had so many questions about height….This kit has been designed specifically for the Santa Cruz …now; we had everyone wanting more height, common questions were always “can I get 3”, “can I get 4”… sorry, the answer is no…seriously, it’s a NO. Even upping it to 2” does NOT WORK with the AWD Turbo setup – it simply binds the transmission under load and at anything other than low acceleration straight line driving…it simply does not work in real life.

Trust us, if we could have given a taller kit the blessing of a long warranty and hassle free life we would have :-}

We have been doing this for a long time (we built our first unibody lift in 2005) and while we would LOVE to make it a taller kit, we tried that already. Our original design for the Santa Cruz was a 2” kit and it was just too much – we didn’t like the angles and how it drove, while some people would be fine with it, we design every part we make to keep your vehicle driving and operating like stock; and do our best to make sure parts do not wear out any faster than they would without our kit installed.

This kit will increase your front ground clearance and keep that air dam and bumper out of the mud or sand on those trips to the cabin or the beach, and yes, when you add a size or two taller tire you will get 2-3″ MORE ground clearance.

This kit has been tested with full boost, wheels sliding and basically…well doing things you should never do to a new vehicle…we DO NOT recommend beating on your vehicle, you will break parts :-}

This is a straightforward install, yes we do include some very important simple install tricks in the instructions – you just need to make sure to read the instructions, they are not campfire starter!

This 1.5 lift kit allows you to fit much more aggressive tires and wheels allowing your Santa Cruz to take the family and all your toys to where they need to go!

***ALWAYS test fit wheels and tires AFTER lift install***

We have fit up to 265/60R18 tires on aftermarket wheels….make sure to send us pics so we can post them up and let people know what your choice was!

Note: Every wheel and tire company seems to use a different measuring tape, one companies 265/60R18 will be 30.5 inches tall and another may be 31.4″ tall yet they have the same size on the sidewall – we can’t possibly test ALL combinations of wheels and tires so please install the kit before ordering tires or use an exact combination you have seen fit before!

All of our kits are a direct bolt in and require no modifications to your vehicle. These kits retain the stock ride quality of your truck as we use as many OEM parts as possible – keeping your truck under warranty is important, which is why we designed each kit to work with Factory parts..

Every Truxxx kit is made in the using USA or Canadian Mill Certified Steel and laser cut to precision tolerances using OEM drawings.

Every kit is welded using the latest US Made welders and triple checked to ensure proper fitment.

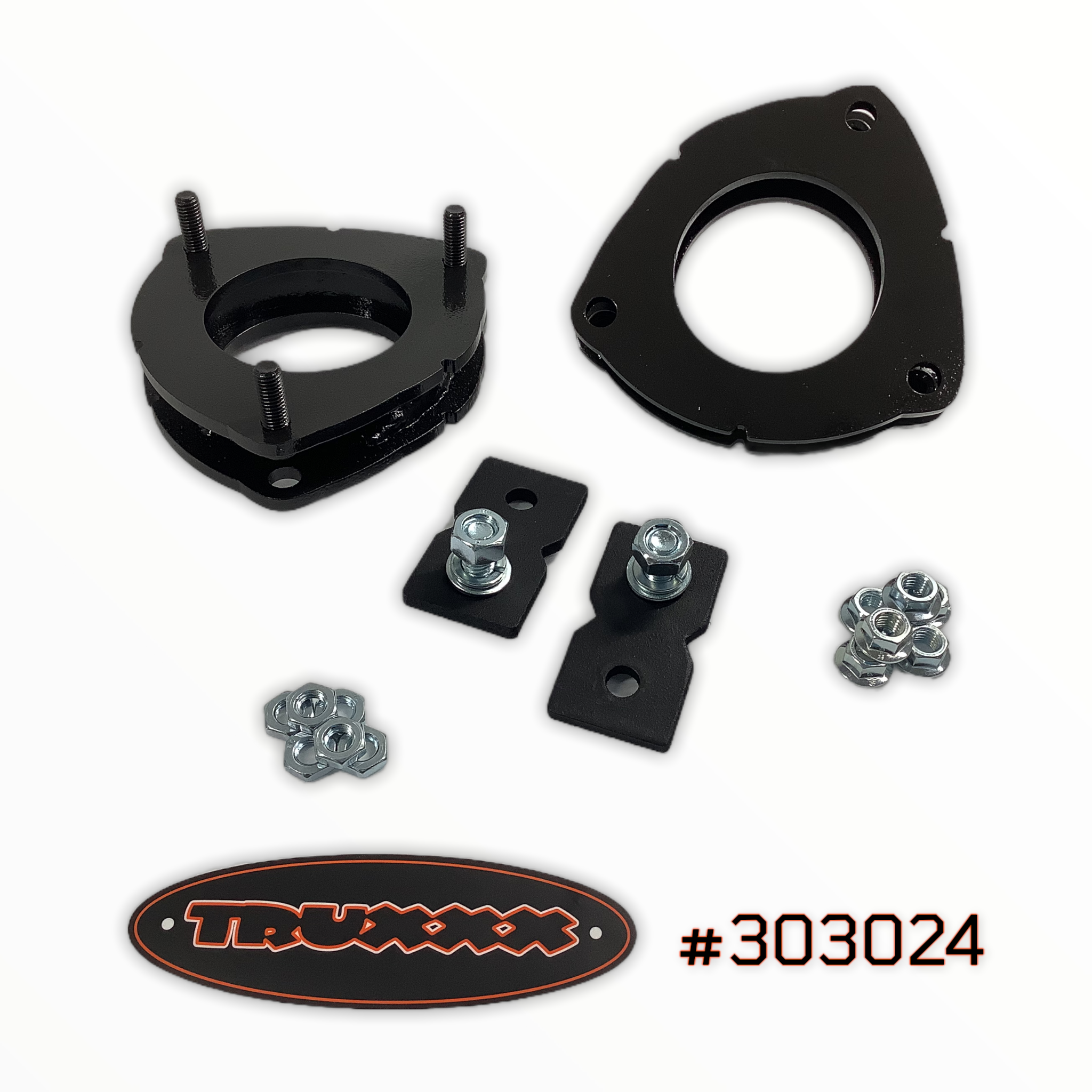

Each kit contains front strut spacers and sway bar extensions – we include all the all the required hardware in 10.9 & 12.9 grade, we have detailed instructions and complete alignment specs.

Recommended installation time is approx. 3 hours + alignment and 30.5” tall tires are commonly used with a stock style offset wheel.
